Seamac Piping Solutions Inc. is one of the leading manufacturers and suppliers
of Compression Tube Fittings. We are producing Compression Tube Fittings in various alloys,
including Inconel 601. We deliver perfectly matching solutions to our clients and getting
appreciation from them for our convenient doorstep service. We offer all size products which are
required to complete the industrial application. Our clients are from all over the globe. Hence,
we follow all national and international quality standards while manufacturing.

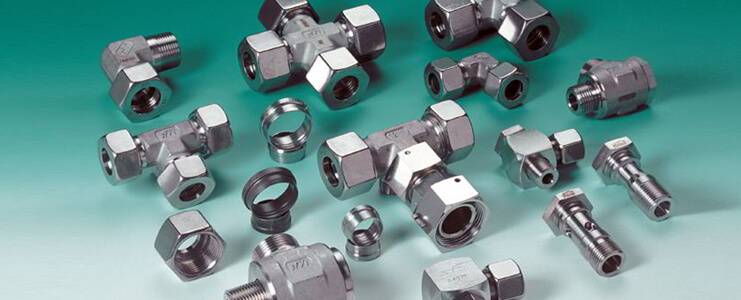

We are delivering the supreme quality of Inconel 601
Compression Tube Fittings. This alloy is a combination of iron, chromium, and
nickel, which is also known as UNS N06601. This alloy has excellent resistance against corrosion
and heat. It also offers resistance in many reducing environments such as crevice corrosion,
pitting corrosion, and stress corrosion cracking. We are using a pure alloy for manufacturing
Inconel 601 Compression Tube Fittings. Our high-grade Inconel 601 Compression Tube Fittings has
superior corrosion resistance and high mechanical strength. It also has excellent forming,
welding, and machining ability.
Seamac Piping Solutions Inc. carries a wide range of Inconel 601 compression tube fittings
in a variety of Tube OD, size, wall thickness, maximum working pressures and temperatures
for compression fittings on pneumatic applications to meet your project’s .
All these properties make our Inconel 601 Compression Tube Fittings
suitable to use in different industrial sectors like thermal processing, chemical
processing, pollution control, and power generation industries. We are focusing on supplying
perfectly adequate solutions for any industry. We are fabricating Inconel 601
Compression Tube Fittings in a variety of specifications, designations,
standards, grades, shapes, and sizes as per the requirements of clients.
Seamac Piping Solutions Inc. aims to provide excellent service within
reasonable rates. We are using modern technology and tools to manufacture Inconel 601
Compression Tube Fittings to ensure preciseness and dimensional accuracy. Our team of
skilled professionals are testing Fittings at various stages of production. This helps to
avoid defects and errors in manufacturing to deliver accurate Fittings to clients.
Inconel 601 Tube Fittings Specifications
Size Range : 1/16 in. to 2 in. & 2mm to 50 mm.
End Connection Thread Type : NPT - ASME B1.20.1, SAE AS71051 | ISO/BSP
Parallel - ISO 228 | ISO/BSP Tapered - ISO 7, BS EN 10226-1 | SAE (Unified) - ASME B1.1
Dimensional Range : 1/16 to 2 inches (imperial); 2 to 50 mm (metric)
Working Pressures : Upto 2000 to 6000 PSI
Medium-Pressure, Gaugeable : Pressure Ratings: Up to 20 000 psig (1378
bar)
Temperature Ratings: Up to 1000°F (537°C)
High-Pressure : Pressure Ratings: Up to 60 000 psig (4134 bar)
Temperature Ratings: Up to 1000°F (537°C)
Type : Tube to Union, Tube to Male, Tube to Female, Instrument Pipe
Fittings, Accessories
Inconel 601 Compression Tube Fittings Equivalent Grades
| STANDARD |
UNS |
WNR. |
AFNOR |
EN |
JIS |
BS |
GOST |
OR |
| Inconel 601 |
N06601 |
2.4851 |
NiCr23Fe |
NiCr15Fe |
NCF 601 |
NA 49 |
XH60BT |
ЭИ868 |
We are not only focusing on maintaining quality, but we are also focusing on
to deliver products safely. We pack Inconel 601 Compression Tube
Fittings in a wooden box, wooden cartons, wooden cases, wooden pallets, and
cover ends with plastic end caps. We are here with ready stock and to deliver every order
within the decided time.
Inconel 601 Compression Tube Fittings Types
Inconel 601 Male Connector
Inconel 601 Male Bulk Head Connector
Inconel 601 Male Elbow
Inconel 601 Male Run Tee
Inconel 601 Male Branch Tee
Inconel 601 Male Tube Adapter
Inconel 601 45 Deg Positionable Male Elbow
Inconel 601 Female Connector
Inconel 601 Female Bulk Head Connector
Inconel 601 Female Elbow
Inconel 601 Female Run Tee
Inconel 601 Female Branch Tee
Inconel 601 Female Tube Adapter
Inconel 601 Female Manometer Connector
Inconel 601 Union
Inconel 601 Reducing Union
Inconel 601 Bulk Head Union
Inconel 601 Union Elbow
Inconel 601 Union Tee
Inconel 601 Union Cross
Inconel 601 Tube Socket Weld Union
Inconel 601 Front Ferrule
Inconel 601 Back Ferrule
Inconel 601 Tube End Closure
Inconel 601 Blanking Plug
Inconel 601 Blanking End
Inconel Alloy 601 Nut
Inconel 601 Coupling Cap (Nuts)
Inconel 601 Fitting End Closure
Inconel 601 Compression Tube Fittings Dimensions:
|
OD
|
OD Actual
|
Thread Designation - Nominal Size
|
Thread per inch
|
|
(fraction inch)
|
(inches)
|
(inches)
|
NPT
|
BSP
|
|
5/16
|
0.3125
|
1/16
|
27
|
28
|
|
13/32
|
0.405
|
1/8
|
27
|
28
|
|
35/64
|
0.540
|
1/4
|
18
|
19
|
|
43/64
|
0.675
|
3/8
|
18
|
19
|
|
27/32
|
0.840
|
1/2
|
14
|
14
|
|
1-3/64
|
1.050
|
3/4
|
14
|
14
|
|
1-5/16
|
1.315
|
1
|
11-1/2
|
11
|
|
1-21/32
|
1.660
|
1-1/4
|
11-1/2
|
11
|
|
1-29/32
|
1.900
|
1-1/2
|
11-1/2
|
11
|
|
2-3/8
|
2.375
|
2
|
8
|
11
|
|
2-7/8
|
2.875
|
2-1/2
|
8
|
11
|
|
3-1/2
|
3.5
|
3
|
8
|
11
|
|
4
|
4.0
|
3-1/2
|
8
|
11
|
|
4-1/2
|
4.5
|
4
|
8
|
11
|
|
5-5/8
|
5.563
|
5
|
8
|
11
|
|
6-5/8
|
6.625
|
6
|
8
|
11
|
Inconel 601 Compression Tube Fittings Chemical Composition
| Grade |
C |
Mn |
Si |
S |
Cu |
Fe |
Ni |
Cr |
| Inconel 601 |
0.10 max |
1.0 max |
0.5 max |
0.015 max |
1.0 max |
Balance |
58.0 – 63.0 |
21.0 – 25.0 |
Inconel 601 Compression Tube Fittings Mechanical Properties
| Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
| 8.1 g/cm3 |
1411 °C (2571 °F) |
Psi – 80,000 , MPa – 550 |
Psi – 30,000 , MPa – 205 |
30 % |
Inconel 601 Tube Fittings Application Industries
- Textile machinery
- Oil and gas industry
- Pulp and paper industry
- Power plants
- Energy industries
- Furniture
- Pharmaceutical processing industry
- Modern architecture
- Home appliances
- Water waste projects
- Synthetic fiber
- Heat exchanger
- Fluid piping
- Dairy and food processing
