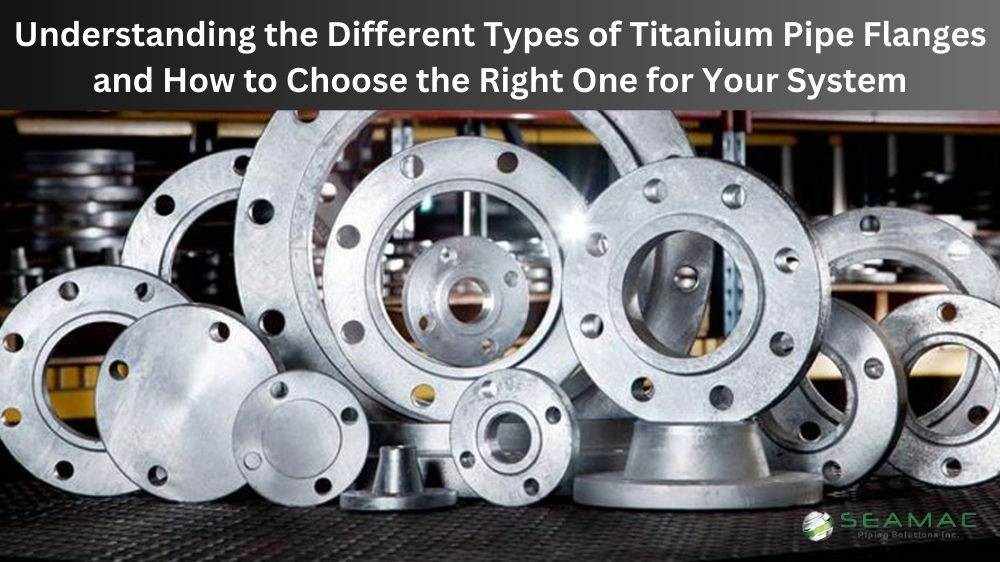

Titanium pipe flanges are crucial components in many industrial and commercial systems. These fixtures connect pipes, valves, and other equipment in a pipeline system. When it comes to selecting the right flange for your system, a variety of options are available. Different types of titanium pipe flanges offer different benefits, so it’s important to understand their differences and choose the right one for your specific application.
In this article, we’ll take a closer look at the different types of titanium pipe flanges available and discuss some key factors to consider when selecting the right one for your system.
Different Types of Titanium Pipe Flanges
Slip-On Flanges
Slip-On flanges are one of the most common types of titanium pipe flanges. They feature a slightly raised face, allowing for connecting different pipes without welding or threading. Along with excellent corrosion resistance, they provide great strength and low weight savings compared to other materials. The slip-on flange is suitable for applications that require frequent inspections and maintenance due to its ease of installation and removal, making them the perfect choice for systems that require frequent modification or upgrades. Additionally, slip-on flanges are known to have less leakage than welded connections due to their design features, like a sloped surface at the end of each side which rests against a mating surface – creating an effective seal. All in all, slip-on flanges are versatile and reliable when connecting two pipe ends together securely without hassle!
Weld Neck Flanges
A weld neck flange is a titanium pipe flange with a long neck designed to fit perfectly with the matching pipe. This flange comes in two pieces, one piece bolted around the circumference of the pipe and another piece directly attached to the end of the pipe using welding. It is generally used for high-temperature and high-pressure applications because it can provide maximum strength and stability when connecting tubes or pipes. The wider area around its hub also helps reduce turbulence while sustaining pressure through increased area coverage at joints. Choosing this flange type depends on your budget, application requirements, user specifications, and desired performance characteristics such as corrosion resistance, heat transmission capabilities, pressure levels etc.
Threaded Flanges
Titanium pipe flanges offer various applications and come in various forms. Threaded flanges are some of the most commonly used titanium flanges, as they can achieve extremely tight seals even when relatively low torqueing is applied, making them great for systems where frequent maintenance or assembly/disassembly is required. When selecting a threaded titanium pipe flange, it’s important to consider its material grade and pressure rating so that it can handle the amount of stress your system requires. Additionally, you should consider whether the threads in the bolt circle area match those on your system’s tubing or piping connection points. As always, ensure that safety considerations such as corrosion resistance and maximum temperature tolerance also meet relevant requirements!
Lap Joint Flanges
Lap joint flanges are used in systems where easy alignment and assembly of pipes are required. They feature a stub end welded to the pipe, and a loose flange slips over the stub end. The loose flange can rotate freely around the stub end, allowing for easy alignment during assembly.
Blind Flanges
Blind flanges are used to seal the end of a pipeline selectively. These flanges are commonly used in systems where maintenance is required on one pipeline section while another remains in operation. Blind flanges can be manufactured with either a raised or flat face. The type of face required will depend on the gasket used.
Conclusion
Choosing the right type of titanium pipe flange for your system can be daunting, but with the right knowledge, you can make an informed decision. You can choose the flange that best meets your system’s needs by considering factors such as pressure, temperature, and application requirements. We hope this article has provided valuable insights into the different types of titanium pipe flanges available and helped you choose the right one for your system. Remember, selecting the wrong flange can lead to costly repairs and even unsafe working conditions, so choosing the right one for your system is essential.
