Types of Flanges in the Oil & Gas Industry: A Complete Guide

Flanges Used In Oil and Gas Industry

Flanges play a vital role in the oil and gas industry by connecting pipelines, valves, and other equipment securely and efficiently. These components provide safety, reliability and easy system maintenance under severe conditions. The type and material of the flange used are determined by the pressure class, temperature and the environment in which the flange will be used.

Types of Flanges Used in the Oil and Gas Industry

Titanium Flanges

Titanium flanges are applied in offshore and subsea systems as they offer excellent resistance to the corrosive effects of seawater and chloride-containing solutions. These are lightweight and strong titanium flanges that can be used in high pressure systems.

Stainless Steel 904L Flanges

Known for their superior resistance to pitting and crevice corrosion, Stainless Steel 904L flanges are ideal for handling sulfuric, phosphoric and acetic acids. These flanges are widely used in oil refineries and chemical processing industries where strength and low maintenance are critical.

Nickel 200 Flanges

Nickel 200 flanges are composed of commercially pure nickel, offering outstanding resistance to neutral and alkaline salts. They are usually applied in areas with high temperatures and low oxidation states, which makes Nickel 200 flanges suitable for gas treatment facilities and oil refineries.

Monel K500 Flanges

Monel K500 flanges combine the excellent corrosion resistance of Monel alloys with added strength from precipitation-hardening. They are ideal for use in high pressure and high velocity situations such as oil wells and offshore platforms. Due to their ability to withstand hydrofluoric acid and seawater, Monel K500 Flanges are widely used in demanding applications.

Material Selection for Flanges

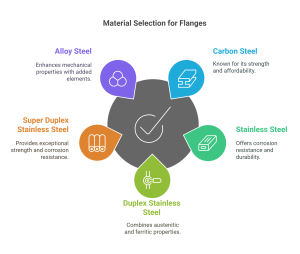

Material Selection for Flanges

Flanges in the oil and gas sector must endure harsh conditions, including extreme temperatures, high pressures and corrosive environments. Carbon steel, stainless steel, duplex and super duplex stainless steel, and alloy steel are commonly used. Super Duplex 2507 offers exceptional strength and corrosion resistance, making it a popular choice for offshore and subsea applications.

Factors to Consider When Choosing Flanges

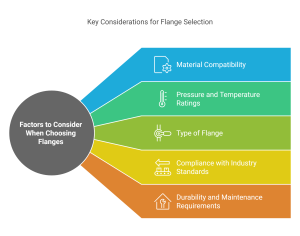

Factors to Consider When Choosing Flanges

  • Material Compatibility

The flange material must withstand the fluid’s chemical properties, operating temperatures and pressures. For instance, titanium and stainless steel flanges are preferred for corrosive environments.

  • Pressure and Temperature Ratings

Flanges are categorised by pressure classes and temperature thresholds. Selecting a flange with appropriate ratings ensures safety and performance.

  • Type of Flange

Options like slip-on, weld neck, blind and threaded flanges are chosen based on installation needs and the type of piping system.

  • Compliance with Industry Standards

Ensure the flanges comply with standards like ASME, ANSI, or API to guarantee quality and compatibility.

  • Durability and Maintenance Requirements

The operational lifespan and ease of maintenance can significantly affect costs and reliability. Choosing high-quality flanges minimises the risk of failures.

Conclusion

The oil and gas industry demands flanges that withstand extreme conditions, including high pressure, high temperature and corrosive environments. The selection of the flange is very important as it affects safety and performance. Choosing the right flange improves the system’s efficiency and reduces the overall risk making it suitable for the oil and gas industry.
